Mailbox

硬件郵箱(Mailbox)驅動程序提供用于處理器間通信的 API，即 HCPU<->LCPU。 它封裝了硬件郵箱模塊通知功能和軟件環形緩沖區機制，使設備的行為類似于UART設備。

以HCPU和LCPU的通信為例，設備mb_h2l1作為HCPU端的tx設備（只寫）和LCPU端的rx設備（只讀），設備mb_l2h1作為HCPU端的rx設備和LCPU端的tx設備。 用戶還可以使用復合設備 bdmb_hl1 進行雙向通信（支持寫入和讀?。?，因為它結合了設備 mb_h2l1 和 mb_l2h1。 調用 rt_device_write 時，數據將寫入環形緩沖區，并向接收處理器發出中斷。 如果接收者通過調用 rt_device_set_rx_indicate 注冊了 rx_ind 回調，它將收到通知，然后使用 rt_device_read 從環形緩沖區讀取數據。

HCPU 可用設備：

• mb_l2h1
• mb_h2l1
• mb_l2h2
• mb_h2l2
• bdmb_hl1
• bdmb_hl2

LCPU 可用設備：

• mb_h2l1
• mb_l2h1
• mb_h2l2
• mb_l2h2
• bdmb_lh1
• bdmb_lh2

驅動配置

可以在 On-chip Peripheral Drivers->Enable HwMailbox 菜單中啟用郵箱設備。

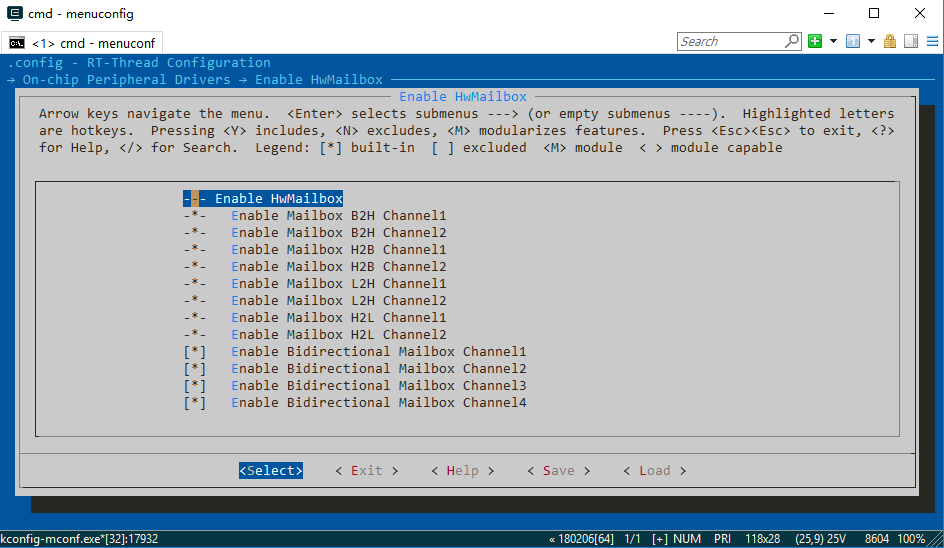

圖 1：HCPU HwMailbox 選擇菜單

使用可以在 custom_mem_map.h 中重新定義環形緩沖區地址和大小宏來修改默認緩沖區位置和大小。 mem_map.h中定義了默認值，如HCPU2LCPU_MB_CH1_BUF_START_ADDR、HCPU2LCPU_MB_CH1_BUF_SIZE。

為了避免非法訪問，環形緩沖區必須位于發送方子系統的 RAM 空間中。 例如 HCPU2LCPU_MB_CH1_BUF_START_ADDR 是 HCPU 到 LCPU 通信的緩沖區地址，該緩沖區必須在 HPSYS RAM 空間中。

使用郵箱驅動程序

使用只讀和只寫郵箱設備,

/* HCPU side code */
static rt_mq_t mbox_mq;
static rt_err_t rx_ind(rt_device_t dev, rt_size_t size)
{
    rt_mq_send(mbox_mq, &size, sizeof(size));
}

void hcpu_example(void)
{
    tx_dev = rt_device_find("mb_h2l1");
    rt_device_open(tx_dev, RT_DEVICE_OFLAG_WRONLY);

    rx_dev = rt_device_find("mb_l2h1");
    /* it's suggest to set rx_indicate before opening the device
     * because once rx device is opened, interrupt may be received,
     * if rx_ind is not registered, it would miss the notification to read the data
     */
    rt_device_set_rx_indicate(rx_dev, rx_ind);
    rt_device_open(rx_dev, RT_DEVICE_OFLAG_RDONLY);

    uint8_t data[4];
    rt_size_t len;
    data[0] = 1;
    data[1] = 2;
    data[2] = 3;
    data[3] = 4;
    len = rt_device_write(tx_dev, 0, data, sizeof(data));
    RT_ASSERT(len == sizeof(data));

    /* receive loopbacked data */
    uint32_t data_size;
    mbox_mq = rt_mq_create("mbox_mq", sizeof(uint32_t), 30, RT_IPC_FLAG_FIFO);

    while (rt_mq_recv(mbox_mq, &data_size, sizeof(data_size), RT_WAITING_FOREVER) == RT_EOK)
    {
        uint8_t *loopback_data = rt_malloc(data_size);
        RT_ASSERT(loopback_data);
        len = rt_device_read(rx_dev, 0, loopback_data, data_size);
        RT_ASSERT(len == data_size);

        /* compare loopback data */
        memcmp(data, loopback_data, sizeof(data));

        rt_free(loopback_data);
    }
}


/* LCPU side code */
static rt_mq_t mbox_mq;
static rt_err_t lcpu_rx_ind(rt_device_t dev, rt_size_t size)
{
    rt_mq_send(mbox_mq, &size, sizeof(size));
}

void lcpu_example(void)
{
    tx_dev = rt_device_find("mb_l2h1");
    rt_device_open(tx_dev, RT_DEVICE_OFLAG_WRONLY);

    rx_dev = rt_device_find("mb_h2l1");
    rt_device_set_rx_indicate(rx_dev, rx_ind);
    rt_device_open(rx_dev, RT_DEVICE_OFLAG_RDONLY);

    /* loop back the received data */
    uint32_t data_size;
    mbox_mq = rt_mq_create("mbox_mq", sizeof(uint32_t), 30, RT_IPC_FLAG_FIFO);

    while (rt_mq_recv(mbox_mq, &data_size, sizeof(data_size), RT_WAITING_FOREVER) == RT_EOK)
    {
        rt_size_t len;
        uint8_t *data = rt_malloc(data_size);
        RT_ASSERT(data);
        len = rt_device_read(rx_dev, 0, data, data_size);
        RT_ASSERT(len == data_size);

        len = rt_device_write(tx_dev, 0, data, data_size);
        rt_free(data);
    }
}

使用雙向郵箱設備,

/* HCPU side code */
static rt_mq_t mbox_mq;
static rt_err_t rx_ind(rt_device_t dev, rt_size_t size)
{
    rt_mq_send(mbox_mq, &size, sizeof(size));
}

void hcpu_example(void)
{
    mb_dev = rt_device_find("bdmb_hl1");
    /* it's suggest to set rx_indicate before opening the device
     * because once rx device is opened, interrupt may be received,
     * if rx_ind is not registered, it would miss the notification to read the data
     */
    rt_device_set_rx_indicate(mb_dev, rx_ind);
    rt_device_open(mb_dev, RT_DEVICE_OFLAG_RDWR);

    uint8_t data[4];
    rt_size_t len;
    data[0] = 1;
    data[1] = 2;
    data[2] = 3;
    data[3] = 4;
    len = rt_device_write(mb_dev, 0, data, sizeof(data));
    RT_ASSERT(len == sizeof(data));

    /* receive loopbacked data */
    uint32_t data_size;
    mbox_mq = rt_mq_create("mbox_mq", sizeof(uint32_t), 30, RT_IPC_FLAG_FIFO);

    while (rt_mq_recv(mbox_mq, &data_size, sizeof(data_size), RT_WAITING_FOREVER) == RT_EOK)
    {
        uint8_t *loopback_data = rt_malloc(data_size);
        RT_ASSERT(loopback_data);
        len = rt_device_read(mb_dev, 0, loopback_data, data_size);
        RT_ASSERT(len == data_size);

        /* compare loopback data */
        memcmp(data, loopback_data, sizeof(data));

        rt_free(loopback_data);
    }
}


/* LCPU side code */
static rt_mq_t mbox_mq;
static rt_err_t rx_ind(rt_device_t dev, rt_size_t size)
{
    rt_mq_send(mbox_mq, &size, sizeof(size));
}

void lcpu_example(void)
{
    mb_dev = rt_device_find("bdmb_lh1");
    /* it's suggest to set rx_indicate before opening the device
     * because once rx device is opened, interrupt may be received,
     * if rx_ind is not registered, it would miss the notification to read the data
     */
    rt_device_set_rx_indicate(mb_dev, rx_ind);
    rt_device_open(mb_dev, RT_DEVICE_OFLAG_RDWR);

    /* loop back the received data */
    uint32_t data_size;
    mbox_mq = rt_mq_create("mbox_mq", sizeof(uint32_t), 30, RT_IPC_FLAG_FIFO);

    while (rt_mq_recv(mbox_mq, &data_size, sizeof(data_size), RT_WAITING_FOREVER) == RT_EOK)
    {
        rt_size_t len;
        uint8_t *data = rt_malloc(data_size);
        RT_ASSERT(data);
        len = rt_device_read(mb_dev, 0, data, data_size);
        RT_ASSERT(len == data_size);

        len = rt_device_write(mb_dev, 0, data, data_size);
        rt_free(data);
    }
}
