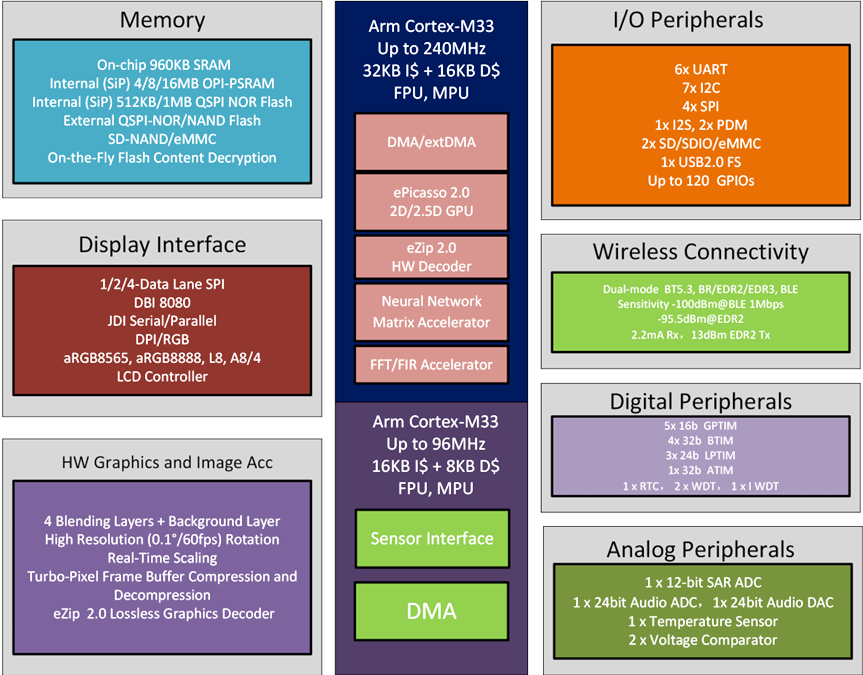

SF32LB56x is a series of highly integrated, high-performance MCU chips designed specifically for ultra-low-power artificial intelligence of things (AIoT) scenarios. The chip features a big.LITTLE architecture based on the Arm Cortex-M33 processor, and integrates a high-performance 2D/2.5D graphics engine, an AI neural network accelerator, dual-mode Bluetooth 5.3, and an audio CODEC. It is widely suitable for various application scenarios, such as wristband-type wearable devices, smart mobile terminals, and smart home systems.
The SF32LB56x series supports the following display interfaces:
- DPI/RGB888, RGB565 (for models 566VCB36 and 567VND36)
- SPI/DSPI/QSPI, including SPI interfaces for e-ink displays
- 8080-8bit
Part # | 560UNN26 | 561UBN26 | 563UCN26 | 56WUND26 | 566VCB36 | 567VND36 |
|---|---|---|---|---|---|---|
Package | QFN68L | QFN68L | QFN68L | QFN68L | BGA175 | BGA175 |
Sizes | 7x7x0.75 mm | 7x7x0.75 mm | 7x7x0.75 mm | 7x7x0.75 mm | 6.1x6.5x0.94 mm | 6.1x6.5x0.94 mm |
Pitch | 0.35mm | 0.35mm | 0.35mm | 0.35mm | 0.4mm | 0.4mm |
HCPU GPIOs | 24 | 24 | 24 | 24 | 79 | 79 |
LCPU GPIOs | 20 | 20 | 20 | 20 | 41 | 41 |
MPI5 Boot SiP | 512KB NOR | 512KB NOR | 512KB NOR | 512KB NOR | 1MB NOR | 1MB NOR |
MPI1 SiP | n/a | 4MB OPI-P | 8MB OPI-P | n/a | 8MB OPI-P | n/a |
MPI2 SiP | n/a | n/a | n/a | 16MB OPI-P | 4MB OPI-P | 16MB OPI-P |
Display Interface | QSPI/8080 | QSPI/8080 | QSPI/8080 | QSPI/8080 | DPI/QSPI/8080/JDI | DPI/QSPI/8080/JDI |
Power Supply | 1.71~3.63V | 1.71~3.63V | 1.71~3.63V | 1.71~3.63V | 1.71~3.63V | 1.71~3.63V |
Temperature | -40~85C | -40~85C | -40~85C | -40~85C | -40~85C | -40~85C |
